Parameters

The function returning a named vector with parameter values:

ParmsGPLakeR <- function(
    Pload = 2, # Areal P loading (mg P.m-2.d-1)
    z = 2, # Depth (m)
    D = 0.01, # Dilution rate (d-1)
    Rmacr = 0.004, # Macrophyte nutrient retention rate (d-1)
    Rphyt = 0.01, # Phytoplankton nutrient retention rate (d-1)
    Mmacr = 250, # Areal P content of macrophytes at equilibrium during light-limitation (mg P.m-2)
    Mphyt = 250, # Areal P content of phytoplankton at equilibrium during light-limitation (mg P.m-2)
    Gmacr = 0.1, # Maximum per capita growth rate of macrophytes (d-1)
    Gphyt = 0.1, # Maximum per capita growth rate of phytoplankton (d-1)
    Hmacrnutr = 0.01, # Half-saturation constant of nutrient limitation of macrophytes (mg P.m-3)
    Hphytnutr = 0.1, # Half-saturation constant of nutrient limitation of phytoplankton (mg P.m-3)
    Pcrit = 70, # Critical turbidity (mg P.m-2)
    nIntlog = 3, # Parameter in intlog function (-)
    nHill = 30, # Parameter in Hill function (-)
    inocmacr = 0.000001, # Inoculum of macrophytes (mg P.m-2)
    inocphyt = 0.000001, # Inoculum of phytoplankton (mg P.m-2)
    inocratemacr = 0.000001, # Inoculum rate of macrophytes (mg P.m-2.d-1)
    inocratephyt = 0.000001 # Inoculum rate of phytoplankton (mg P.m-2.d-1)
    ) {

  # Gather function arguments in a named vector
  y <- c(Pload = Pload,
         z = z,
         D = D,
         Rmacr = Rmacr,
         Rphyt = Rphyt,
         Mmacr = Mmacr,
         Mphyt = Mphyt,
         Gmacr = Gmacr,
         Gphyt = Gphyt,
         Hmacrnutr = Hmacrnutr,
         Hphytnutr = Hphytnutr,
         Pcrit = Pcrit,
         nIntlog = nIntlog,
         nHill = nHill,
         inocmacr = inocmacr,
         inocphyt = inocphyt,
         inocratemacr = inocratemacr,
         inocratephyt = inocratephyt)

  # Return
  return(y)
}

Initial conditions

The function returning a named vector with initial values for the 3 state variables:

• sPmacr: Areal P content of macrophytes (mg P.m-2);
• sPphyt: Areal P content of phytoplankton (mg P.m-2);
• sPwater: (Free) P concentration in the water (mg P.m-3):

InitGPLakeR <- function(
    sPmacr = 250, # Areal P content of macrophytes (mg P.m-2)
    sPphyt = 0, # Areal P content of phytoplankton (mg P.m-2)
    sPwater = 0 # (Free) P concentration in the water (mg P.m-3)
    ) {

  # Gather initial conditions in a named vector; given names are names for the state variables in the model
  y <- c(sPmacr = sPmacr,
         sPphyt = sPphyt,
         sPwater = sPwater)

  # Return
  return(y)
}

Differential equations

The function computing the rates of change of the state variables with respect to time:

RatesGPLakeR <- function(t, y, parms) {
  # use the with() function to be able to access the parameters and states easily
  # remember that the with() function is with(data, expr), where
  # - 'data' is ideally a list with named elements
  #   thus: 'y' and 'parms' are combined using function c and converted using function as.list
  # - 'expr' is an expression (i.e. code) that is evaluated
  #   this can span multiple lines of code when embraced with curly brackets {}
  with(
    as.list(c(y, parms)),{

      ### Optional: forcing functions: get value of the driving variables at time t (if any)

      ### Optional: auxiliary equations
      Pwater <- max(sPwater, 0)
      LRmacr <- Mmacr * ( 1 - log(exp(nIntlog * (1 - Pload / (Rmacr * Mmacr))) + 1) / log(exp(nIntlog) + 1))
      LRphyt <- Mphyt * (1 - log(exp(nIntlog * (1 - Pload / ((Rphyt + D) * Mphyt))) + 1) / log(exp(nIntlog) + 1))
      State <- Pcrit ^ nHill / (Pcrit ^ nHill + sPphyt ^ nHill)
      Pmacreq <- LRmacr * State
      Pphyteq <- min(max(((Pload - Rmacr * sPmacr) / (Rphyt + D)),0),LRphyt) * State + LRphyt * (1 - State)
      Pwatereq <- ((Pload - (Rphyt + D) * LRphyt) / (z * D)) * (1 - State)
      Macrnutrlim <- Pwater / (Hmacrnutr + Pwater)
      Phytnutrlim <- Pwater / (Hphytnutr + Pwater)
      Hmacrdens <- Rmacr / (Gmacr - Rmacr) # H for density dependence of macrophytes
      Hphytdens <- (Rphyt + D) / (Gphyt - (Rphyt + D)) # H for density dependence of phytoplankton
      Macrdenslim <- Hmacrdens / (Hmacrdens + sPmacr / (Pmacreq + inocmacr))
      Phytdenslim <- Hphytdens / (Hphytdens + sPphyt / (Pphyteq + inocphyt))
      GRmacr <- Gmacr * Macrnutrlim * Macrdenslim
      GRphyt <- Gphyt * Phytnutrlim * Phytdenslim

      # Rate equations
      dPmacr <- inocratemacr + GRmacr * sPmacr - Rmacr * sPmacr
      dPphyt <- inocratephyt + GRphyt * sPphyt - (Rphyt + D) * sPphyt
      dPwater <- (Pload - GRmacr * sPmacr - GRphyt * sPphyt) / z - D * Pwater

      ### Gather all rates of change in a vector
      # - the rates should be in the same order as the states (as specified in 'y')
      # - it can be a named vector, but does not need to be
      RATES <- c(dPmacr = dPmacr,
                 dPphyt = dPphyt,
                 dPwater = dPwater)

      ### Optional: get in/out flow used to compute mass balances (or set MB <- NULL)
      # not included here (thus here use MB <- NULL), see template 3
      MB <- NULL

      ### Optional: gather auxiliary variables that should be returned (or set AUX <- NULL)
      # - this should be a named vector or list!
      AUX <- NULL

      # Return result as a list
      # - the first element is a vector with the rates of change (in the same order as 'y')
      # - all other elements are (optional) extra output, which should be named
      outList <- list(c(RATES, # the rates of change of the state variables (same order as 'y'!)
                        MB),   # the rates of change of the mass balance terms (or NULL)
                      AUX) # optional additional output per time step
      return(outList)
    })
}

With these 3 functions now defined, the GPLakeR mini-model has been implemented in R code, and the model can now numerically be solved using the ode function from the deSolve package.

Here, let’s solve the model for 3 different values of parameter Pload: first for its default value (2; solved model stored in states), then when increasing it by 10% (solved model stored in statesHI), and then when decreasing it with 10% (solved model stored in statesLO).

states <- ode(y = InitGPLakeR(),
              times = seq(from = 0, to = 2000, by = 20),
              func = RatesGPLakeR,
              parms = ParmsGPLakeR(Pload = 2),
              method = "ode45")
statesHI <- ode(y = InitGPLakeR(),
                times = seq(from = 0, to = 2000, by = 20),
                func = RatesGPLakeR,
                parms = ParmsGPLakeR(Pload = 1.1*2),
                method = "ode45")
statesLO <- ode(y = InitGPLakeR(),
                times = seq(from = 0, to = 2000, by = 20),
                func = RatesGPLakeR,
                parms = ParmsGPLakeR(Pload = 0.9*2),
                method = "ode45")

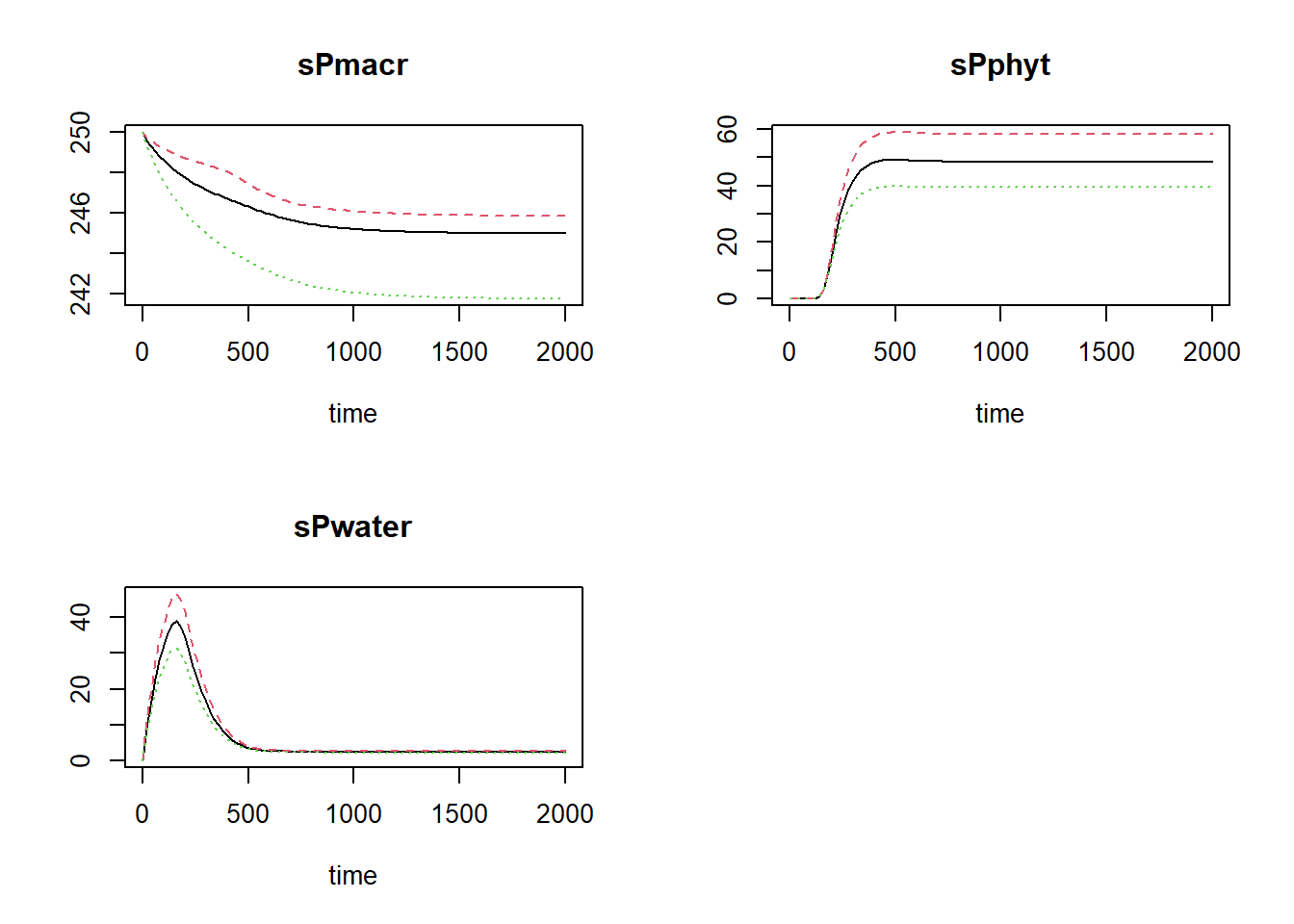

We can show these different scenarios:

plot(states, statesHI, statesLO)

where the black line is the default value for Pload, the red line is the high value (10% increase), and the green line shows the simulation for the value reduced by 10%.

We can now calculate the sensitivity index (SI) and elasticity index (EI) of the parameter Pload on state sPmacr at the end of the simulation:

deltaState = statesHI[nrow(statesHI),"sPmacr"] - statesLO[nrow(statesHI),"sPmacr"]
deltaParm = 0.1*2
SI <- deltaState / (2*deltaParm)
SI

##   sPmacr
## 10.25035

EI <- (deltaState/states[nrow(states),"sPmacr"]) / ((2*deltaParm) / 2)
EI

##     sPmacr
## 0.08368095

This approach can be repeated for the other parameters and both state variables. Repeating the same procedure for all parameters and all state variables yields the following elasticity indices:

### Settings for sensitivity analysis

# integration settings
inits <- InitGPLakeR()
parms <- ParmsGPLakeR()
times <- seq(from = 0, to = 2000, by = 20)
method <- "ode45"

# Specify the parameters to compute sensitivity indices for
sensiParms <- names(parms) # this can be a subset of all parameters

# Set the fraction by which each parameter is decreased/increased during sensitivity analysis
changeFraction <- 0.1 # 10%

# Set the time at which we want to evaluate the values of the state variables
evalTime <- max(times) # this can be e.g. max(times): it can also be other times, but MUST occur in 'times'!

# Set the name of the state variable for which we want to compute the sentitivity index
stateName <- "sPmacr"


### Perform sensitivity analysis

# Create data.frame to hold the output for each state in "sensiParms" and time in "evalTime" (stateDiff)
stateDiff <- data.frame(time = evalTime)
stateDiff[,stateName]  <- NA # Column for the value of the state given the unchanged parameters
stateDiff[,sensiParms] <- NA # Column(s) for the difference in state values given changes in parameters

# Create empty vectors to hold the parameter differences (parmDiff)
parmDiff <- parms[sensiParms] # this makes of copy of the named parameter vector
parmDiff[]  <- NA # This sets all elements within the vector to value NA

# Update the times vector with the value of evalTime (so that any evalTime is possible)
times <- sort(unique(c(times, evalTime)))

# In a 'for'-loop with iterator "i" (which values specfied by 'sensiParms'):
# - create 2 copies of 'parms': called 'paramsLo' and 'paramsHi'
# - reduce the value of the i-th parameter in paramsLo with 'changeFraction'
# - increase the value of the i-th parameter in paramsHi with 'changeFraction'
# - solve the ODE model for both parameter sets (they are identical except for the i-th parameter)
# - get the values of the state after 'evalTime' time units and store the difference in 'stateDiff'
# - store the difference between the elevated and reduced parameter value in 'parmDiff'
for(i in sensiParms) {
  # Create copies of parms
  paramsLo <- parms
  paramsHi <- parms

  # Reduce/increase the value of the i-th parameter
  paramsLo[i] <- (1 - changeFraction) * parms[i]
  paramsHi[i] <- (1 + changeFraction) * parms[i]

  # Solve the ODE model for both sets of parameters
  states_lo <- ode(y = inits,
                   times = times,
                   parms = paramsLo,
                   func = RatesGPLakeR,
                   method = method)
  states_hi <- ode(y = inits,
                   times = times,
                   parms = paramsHi,
                   func = RatesGPLakeR,
                   method = method)

  # Retrieve the values of the state variable at evalTime time units
  subsetLo <- subset(as.data.frame(states_lo), time %in% evalTime)[[stateName]]
  subsetHi <- subset(as.data.frame(states_hi), time %in% evalTime)[[stateName]]

  # Compute the differences and store in stateDiff
  stateDiff[,i] <- subsetHi - subsetLo

  # Store the difference between the elevated and reduced parameter value in the i-th element of parmDiff
  parmDiff[i] <- paramsHi[i] - paramsLo[i]
}

# Add the value of the state variable given the (unchanged!) parameter values
states <- ode(y = inits,
              times = times,
              parms = parms,
              func = RatesGPLakeR,
              method = method)
stateDiff[,stateName] <- subset(as.data.frame(states), time %in% evalTime)[[stateName]]

### Compute sensitivity indices
SI <- stateDiff  # make copy of data.frame stateDiff
for(i in sensiParms) {
  SI[,paste("SI_d",i,sep="_")] <- stateDiff[,i] / parmDiff[i] # add index as new column
}

We can now inspect the sensitivity index:

SI

##   time   sPmacr    Pload          z           D     Rmacr      Rphyt    Mmacr         Mphyt      Gmacr       Gphyt  Hmacrnutr Hphytnutr     Pcrit  nIntlog
## 1 2000 244.9864 4.100138 -0.1038395 -0.07146018 -4.712618 0.03203514 44.17854 -3.726386e-06 0.00833426 -0.02710324 -0.2041238 0.1010331 0.1014127 3.146827
##        nHill    inocmacr      inocphyt inocratemacr  inocratephyt SI_d_Pload     SI_d_z    SI_d_D SI_d_Rmacr SI_d_Rphyt SI_d_Mmacr    SI_d_Mphyt SI_d_Gmacr
## 1 0.01133451 1.98738e-07 -4.028252e-08 5.407035e-05 -3.547486e-05   10.25035 -0.2595987 -35.73009  -5890.772   16.01757  0.8835708 -7.452772e-08   0.416713
##   SI_d_Gphyt SI_d_Hmacrnutr SI_d_Hphytnutr  SI_d_Pcrit SI_d_nIntlog  SI_d_nHill SI_d_inocmacr SI_d_inocphyt SI_d_inocratemacr SI_d_inocratephyt
## 1  -1.355162      -102.0619       5.051653 0.007243765     5.244711 0.001889084     0.9936899    -0.2014126          270.3518         -177.3743

We can also calculate the elasticity indices, rounded to 5 digits and sorted on decreasing absolute value:

Es <- parms[sensiParms] / SI$sPmacr * SI[,paste("SI_d",sensiParms,sep="_")]
Es <- as.numeric(Es)
names(Es) <- sensiParms
round(Es[order(abs(Es),decreasing=TRUE)],5)

##        Mmacr        Rmacr        Pload      nIntlog    Hmacrnutr            z        Pcrit    Hphytnutr            D        Rphyt        Gphyt        nHill
##      0.90165     -0.09618      0.08368      0.06422     -0.00417     -0.00212      0.00207      0.00206     -0.00146      0.00065     -0.00055      0.00023
##        Gmacr inocratemacr inocratephyt        Mphyt     inocmacr     inocphyt
##      0.00017      0.00000      0.00000      0.00000      0.00000      0.00000

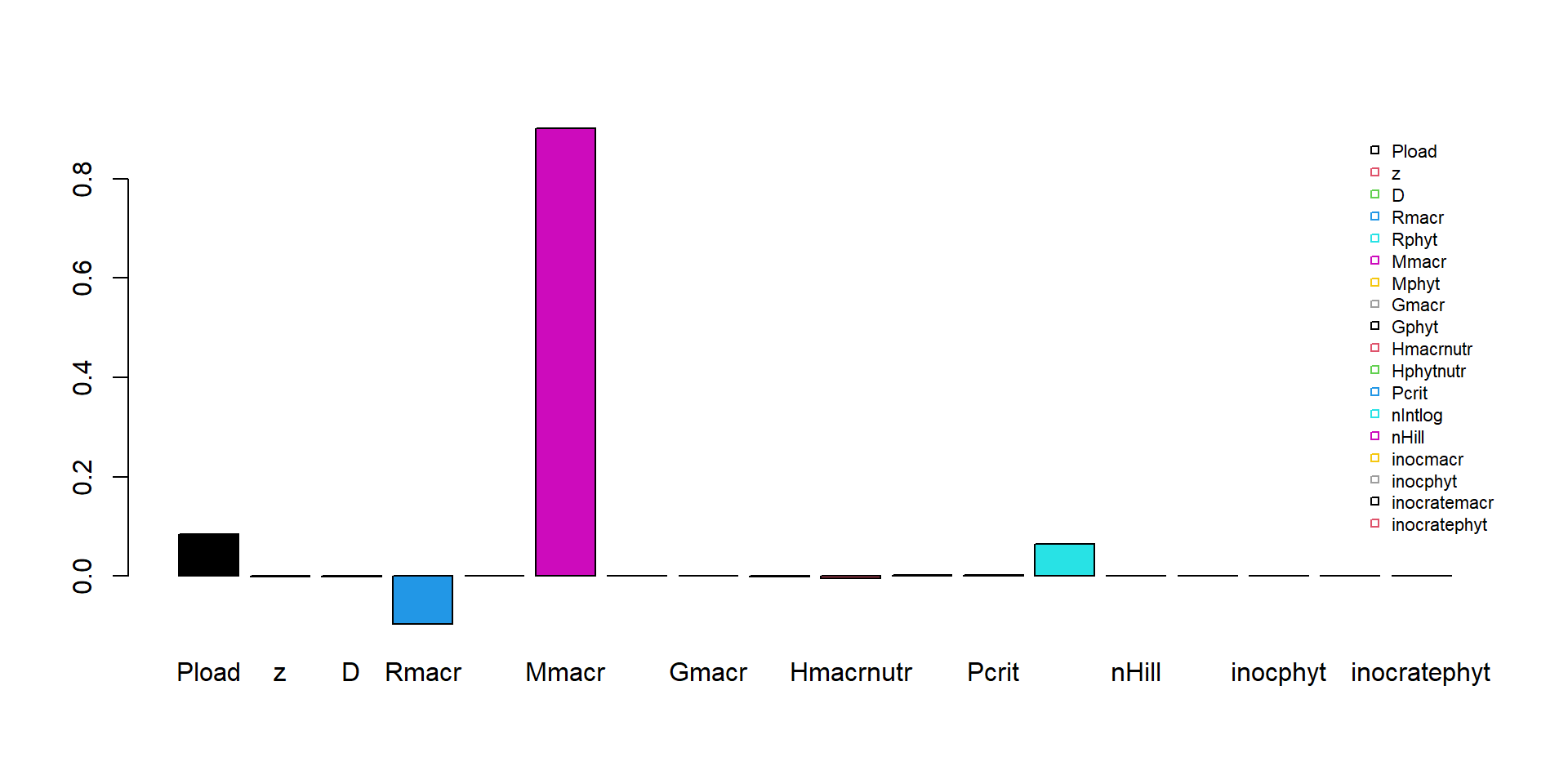

We could use a barplot to show the elasticities:

barplot(Es, col = 1:8, beside = TRUE)
legend(x="topright", horiz=FALSE, bty="n", legend=names(Es), pch=22, cex=0.7, col=1:8)

To include a time-varying parameter Pload, we can use the approxfun function to create a forcing function that can be used within the RatesGPLakeR function to interpolate the value of Pload. First create a data.frame with the columns time (values 0, 5000, 15000 and 25000) and Pload (values 0.05, 0.05, 5 and 0.05):

Ploaddf <- data.frame(time = c(0, 5000, 15000, 25000),
                      Pload = c(0.05, 0.05, 5, 0.05))
Ploaddf

##    time Pload
## 1     0  0.05
## 2  5000  0.05
## 3 15000  5.00
## 4 25000  0.05

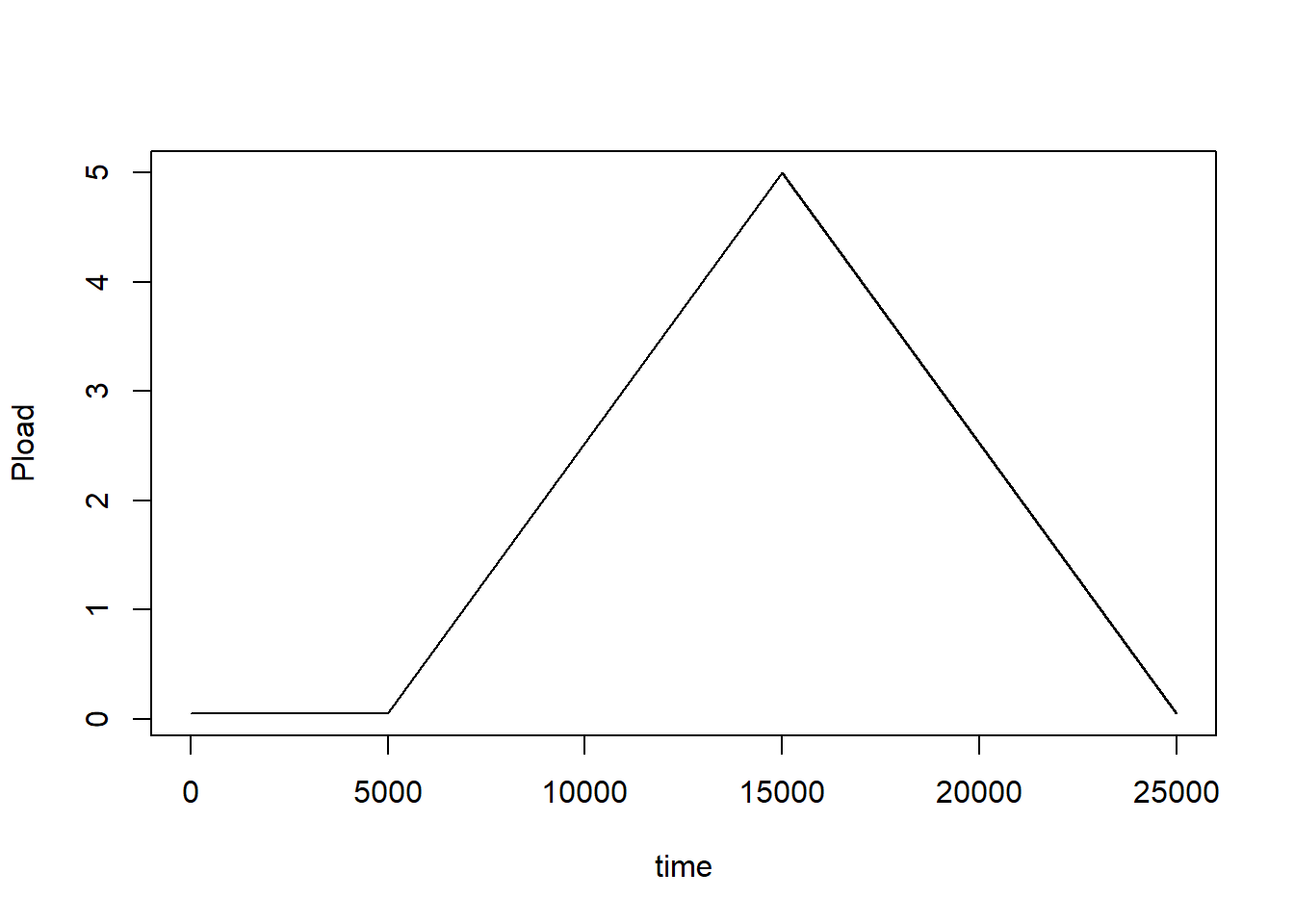

Using the data.frame Ploadf we can now create the forcing function, and test it by plotting:

Pload_forcingfunction <- approxfun(x = Ploaddf$time, y = Ploaddf$Pload, method = "linear", rule = 2)
plot(0:25000, Pload_forcingfunction(0:25000), type = "l", xlab = "time", ylab = "Pload")

Now, we can update the RatesGPLakeR function (let’s create a copy to call it RatesGPLakeRforcing), to include the forcing function Pload_forcingfunction that will be evaluated at time t to compute parameter Pload. The computed value for Pload is also returned as an auxiliary variable:

RatesGPLakeRforcing <- function(t, y, parms) {
  # use the with() function to be able to access the parameters and states easily
  # remember that the with() function is with(data, expr), where
  # - 'data' is ideally a list with named elements
  #   thus: 'y' and 'parms' are combined using function c and converted using function as.list
  # - 'expr' is an expression (i.e. code) that is evaluated
  #   this can span multiple lines of code when embraced with curly brackets {}
  with(
    as.list(c(y, parms)),{

      ### Optional: forcing functions: get value of the driving variables at time t (if any)
      Pload <- Pload_forcingfunction(t)

      ### Optional: auxiliary equations
      Pwater <- max(sPwater, 0)
      LRmacr <- Mmacr * ( 1 - log(exp(nIntlog * (1 - Pload / (Rmacr * Mmacr))) + 1) / log(exp(nIntlog) + 1))
      LRphyt <- Mphyt * (1 - log(exp(nIntlog * (1 - Pload / ((Rphyt + D) * Mphyt))) + 1) / log(exp(nIntlog) + 1))
      State <- Pcrit ^ nHill / (Pcrit ^ nHill + sPphyt ^ nHill)
      Pmacreq <- LRmacr * State
      Pphyteq <- min(max(((Pload - Rmacr * sPmacr) / (Rphyt + D)),0),LRphyt) * State + LRphyt * (1 - State)
      Pwatereq <- ((Pload - (Rphyt + D) * LRphyt) / (z * D)) * (1 - State)
      Macrnutrlim <- Pwater / (Hmacrnutr + Pwater)
      Phytnutrlim <- Pwater / (Hphytnutr + Pwater)
      Hmacrdens <- Rmacr / (Gmacr - Rmacr) # H for density dependence of macrophytes
      Hphytdens <- (Rphyt + D) / (Gphyt - (Rphyt + D)) # H for density dependence of phytoplankton
      Macrdenslim <- Hmacrdens / (Hmacrdens + sPmacr / (Pmacreq + inocmacr))
      Phytdenslim <- Hphytdens / (Hphytdens + sPphyt / (Pphyteq + inocphyt))
      GRmacr <- Gmacr * Macrnutrlim * Macrdenslim
      GRphyt <- Gphyt * Phytnutrlim * Phytdenslim

      # Rate equations
      dPmacr <- inocratemacr + GRmacr * sPmacr - Rmacr * sPmacr
      dPphyt <- inocratephyt + GRphyt * sPphyt - (Rphyt + D) * sPphyt
      dPwater <- (Pload - GRmacr * sPmacr - GRphyt * sPphyt) / z - D * Pwater

      ### Gather all rates of change in a vector
      # - the rates should be in the same order as the states (as specified in 'y')
      # - it can be a named vector, but does not need to be
      RATES <- c(dPmacr = dPmacr,
                 dPphyt = dPphyt,
                 dPwater = dPwater)

      ### Optional: get in/out flow used to compute mass balances (or set MB <- NULL)
      # not included here (thus here use MB <- NULL), see template 3
      MB <- NULL

      ### Optional: gather auxiliary variables that should be returned (or set AUX <- NULL)
      # - this should be a named vector or list!
      AUX <- c(Pload = Pload)

      # Return result as a list
      # - the first element is a vector with the rates of change (in the same order as 'y')
      # - all other elements are (optional) extra output, which should be named
      outList <- list(c(RATES, # the rates of change of the state variables (same order as 'y'!)
                        MB),   # the rates of change of the mass balance terms (or NULL)
                      AUX) # optional additional output per time step
      return(outList)
    })
}

Now, we can solve this model with the initial values sPmacr = 250, sPphyt = 0, sPwater = 0, and the parameter D = 0.01 (all others at their default values) for 25000 time-steps (note that this may take a little while):

statesPload1 <- ode(y = InitGPLakeR(sPmacr = 5, sPphyt = 0, sPwater = 0),
                  times = seq(from = 0, to = 25000, by = 1),
                  parms = ParmsGPLakeR(D = 0.01),
                  func = RatesGPLakeRforcing,
                  method = "ode45")

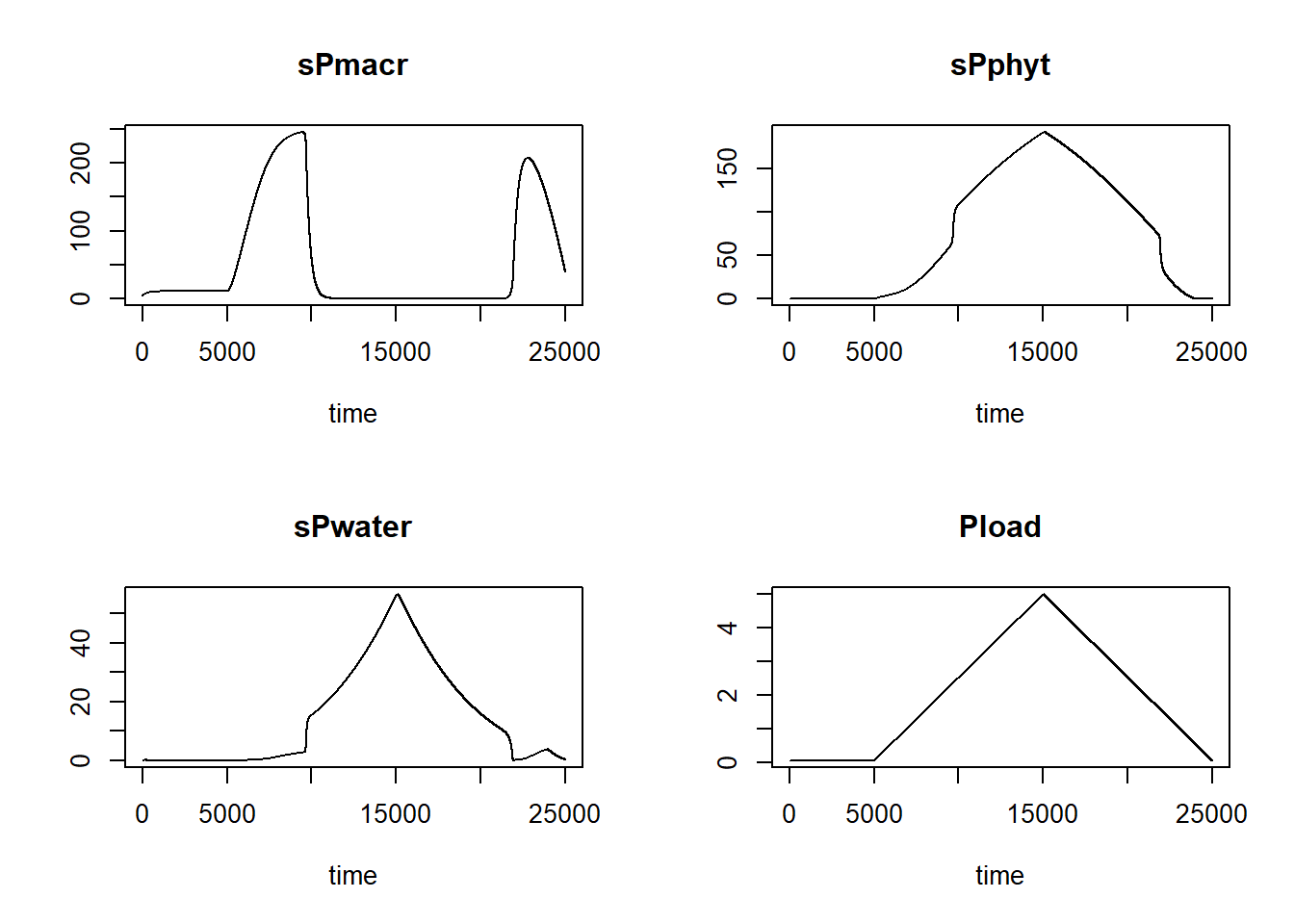

plot(statesPload1)

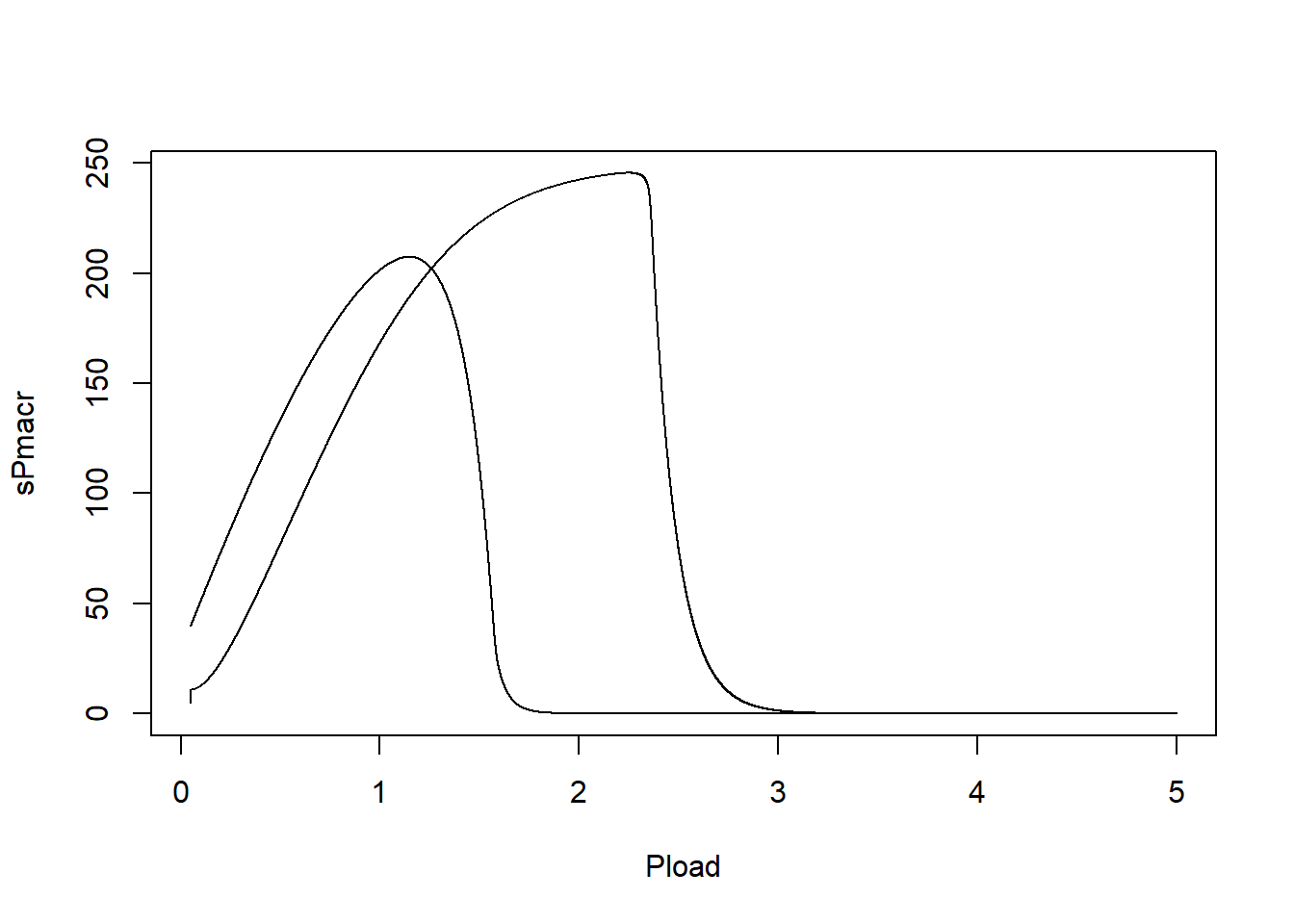

We can now also plot Pload against sPmacr:

plot(statesPload1[,"Pload"], statesPload1[,"sPmacr"], xlab = "Pload", ylab = "sPmacr", type = "l")

In such a plot, we can see that the system has alternative stable states: with increasing P loading, the lake can stay in a clear and vegetated state for quite long, up to a point where P loading becomes too high (ca. 2.3) so that the lake suddenly switches to a turbid state without vegetation (the state sPmacr does not become mathematically 0, but it will become very low). After this switching point, when we reduce P loading, the system does not suddenly switch back at the same level of P loading: it has to drop to a lower value (ca. 1.8) before the system switches back to a clear and vegetation state.
